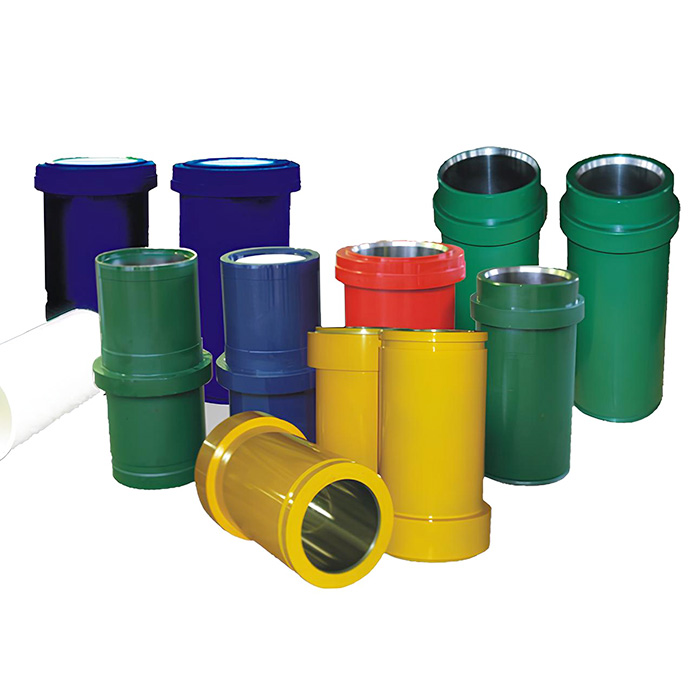

SMKST mud pump liners are crafted to meet the oil and gas drilling industry’s highest durability and performance standards. Recognized as the “heart” of the drilling system, these liners play a pivotal role in the operation of mud pumps, which are crucial for circulating drilling fluids through the wellbore. Our liners are designed to withstand the challenging conditions of high temperatures and pressure encountered during drilling operations.

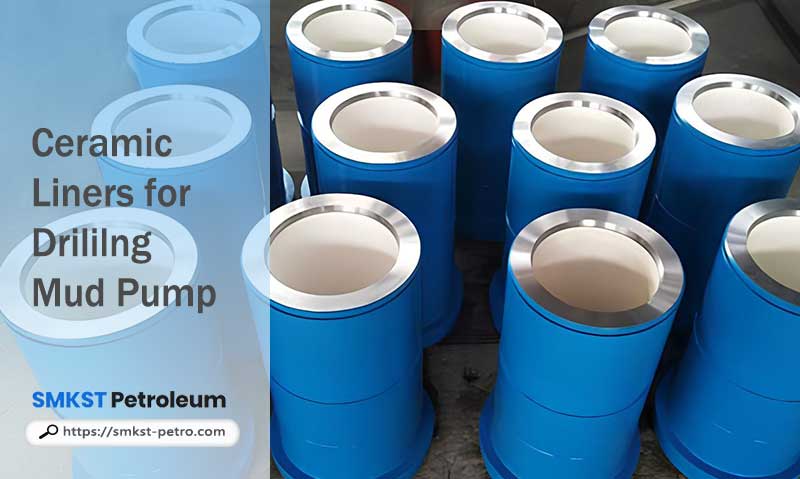

With bi-metal and ceramic construction options, our mud pump liners cater to various operational needs. The ceramic liners offer exceptional longevity and a service life surpassing traditional liners. They are highly resistant to corrosion and wear, especially in high-temperature settings. On the other hand, our metal liners, including bi-metal and chrome-plated options, provide cost-effective solutions without compromising performance.
By reducing the frequency of maintenance and replacements, our liners ensure continuous drilling operations, leading to improved efficiency and reduced operational costs. SMKST Mud Pump Liners are the perfect choice for operations that require reliable, high-quality components that uphold the integrity of mud pumps under harsh drilling conditions.
| Material | AISI 1045 Zirconia-based Ceramic | AISI 1045 Hardened Steel/Chrome Plated |
| Hardness | HRC 92~94 | HRC 58~69 |
| Normal Service Life (Hours) | 2000~4000 | 800 |
| Max. Operating Pressure (psi) | 7500 | 7500 |
| Operating Temperature (℉) | 20~350 | 20~240 |
| pH Range | 7.5~10.2 | 7.5~10.2 |
| Hydrogen Sulfide Resistance (ppm) | 24 | 22 |
| Sand Solids Compatibility | 0.21% Oil Based and Oil Emulsion | 0.21% Oil Based and Oil Emulsion |
Custom Solutions for Various Mud Pump Models:
We provide a comprehensive range of liners to match the specific requirements of diverse mud pump models and brands. Recognizing that each pump has unique structural and dimensional needs, SMKST liners are available in different configurations to ensure a precise fit. Whether you are using standard models or custom equipment, we have you covered.
Our compatibility extends to leading mud pump brands and series, including but not limited to:
- Bomco: F-500, F-800, F-1000, F-1300, F-1600, F-1600HL
- Brewster: B-1000-T, B-1100-T, B-1300-T, B-1600-T
- HONGHUA: HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
- Emsco, National, Oilwell, Ideco, Gardner Denver, Wirth, Russian Pumps, Drillmec, Upetrom, and many more.
We also support customized solutions based on technical drawings, catering to specialized or non-standard requirements.
Mud Pump Liner Pressure Ratings Table
To ensure compatibility and optimal performance, SMKST mud pump liners are rated for various pressure levels tailored to meet the demands of different drilling operations.
